GPStar Cyclotron Bypass

The GPStar Cyclotron Bypass is used to connect your Frutto Cyclotron LEDs or any addressable LED ring or lights to the GPStar Proton Pack electronics.

With the removal of the bypass shunt (included with the connectors variant), you can even make use of Proton Pack shells with removable cyclotron lids by breaking the ground connection loop with a simple switch system.

2 Variants available.

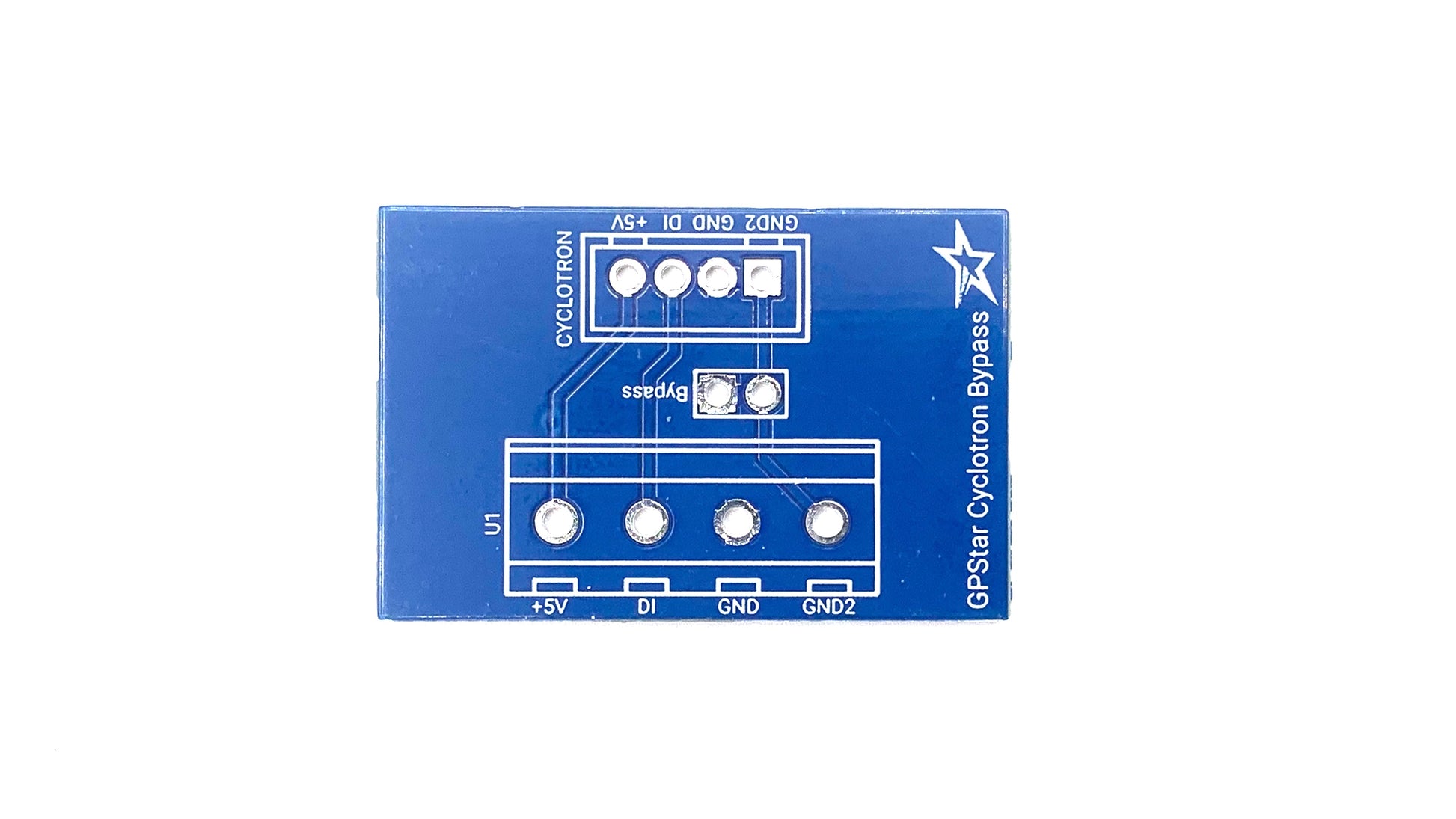

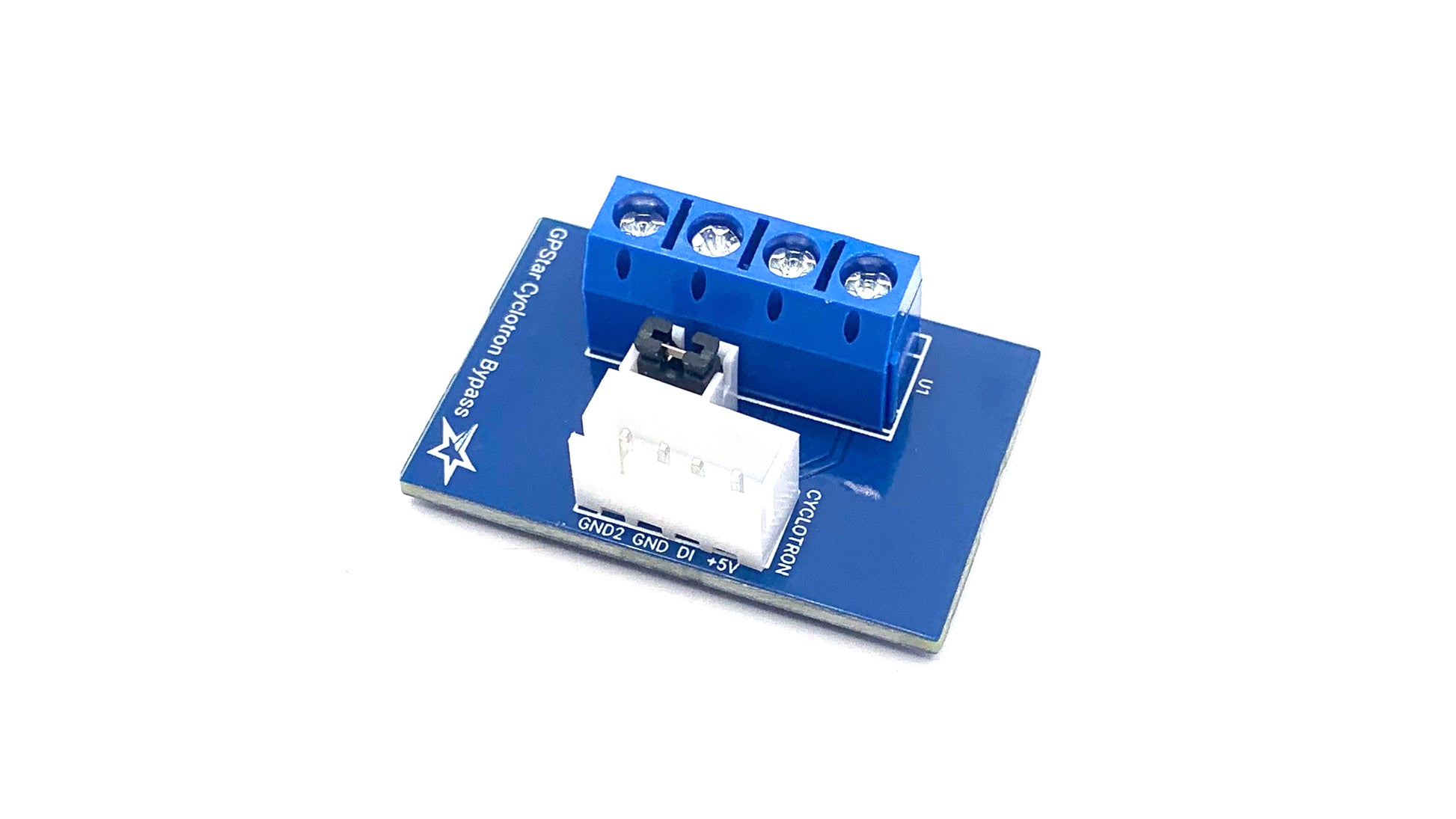

• With connectors pre-soldered

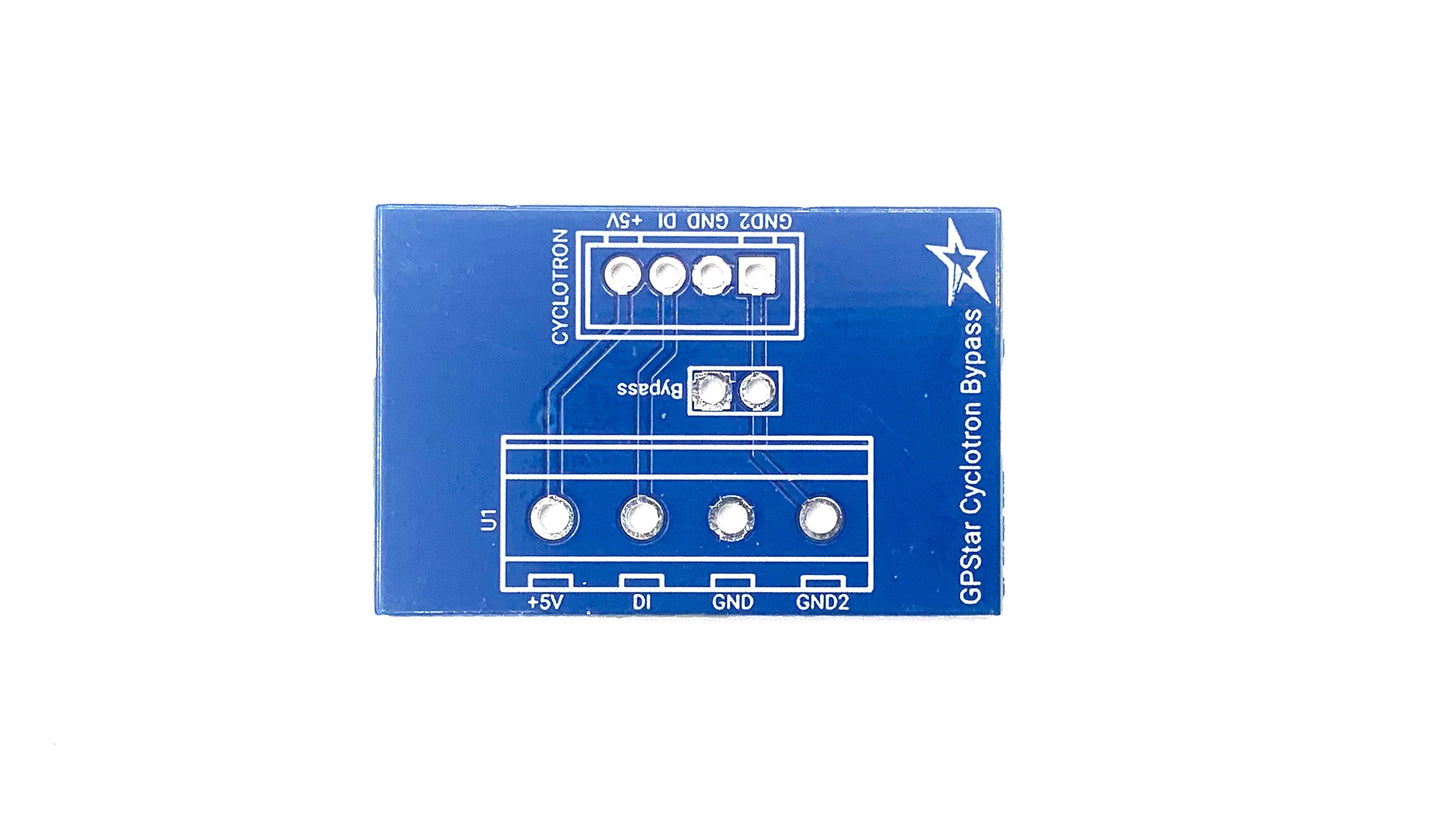

• Board only

If you need a cyclotron extension cable, see the following:

GPStar Cyclotron DIY Extension Cable

Usage:

With the GPStar Cyclotron DIY Extension Cable, connect the bypass board to the Proton Pack board via the Cyclotron Connector. Connect the 3 wires from the 1st Cyclotron LED to the +5V, DI and GND on the terminal blocks of the bypass board.

Download GPStar Cyclotron Bypass Hookup Guide
