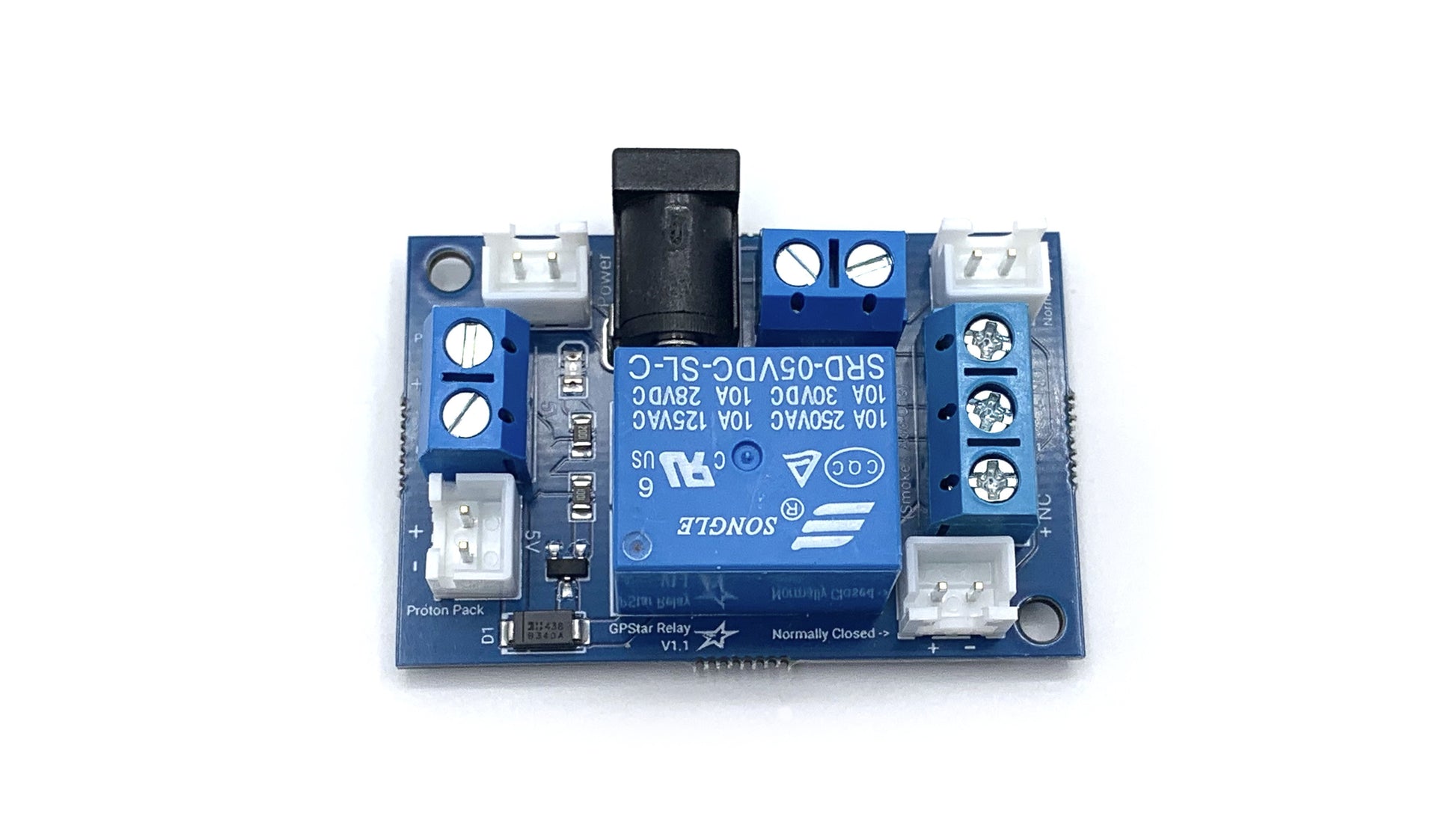

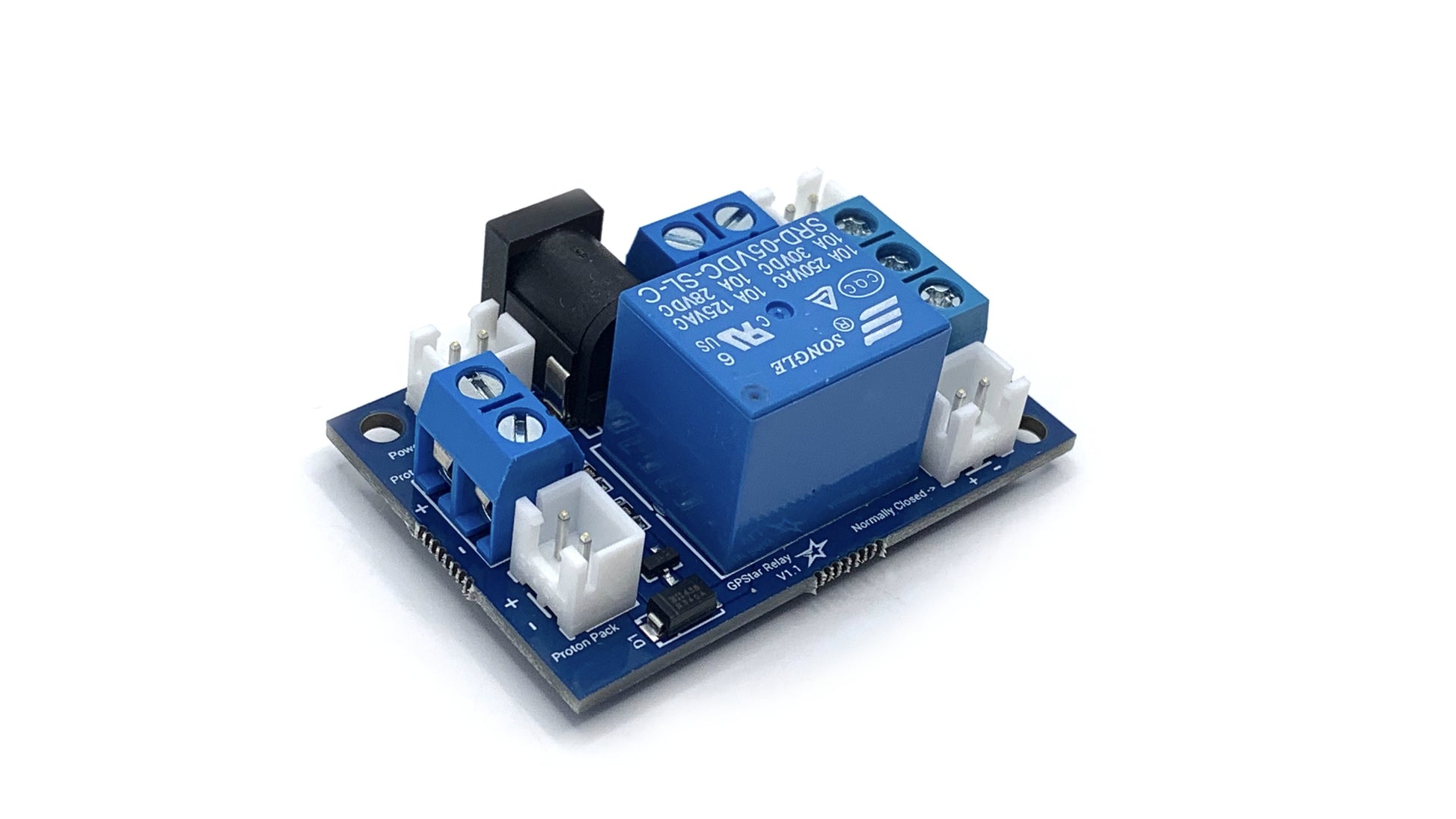

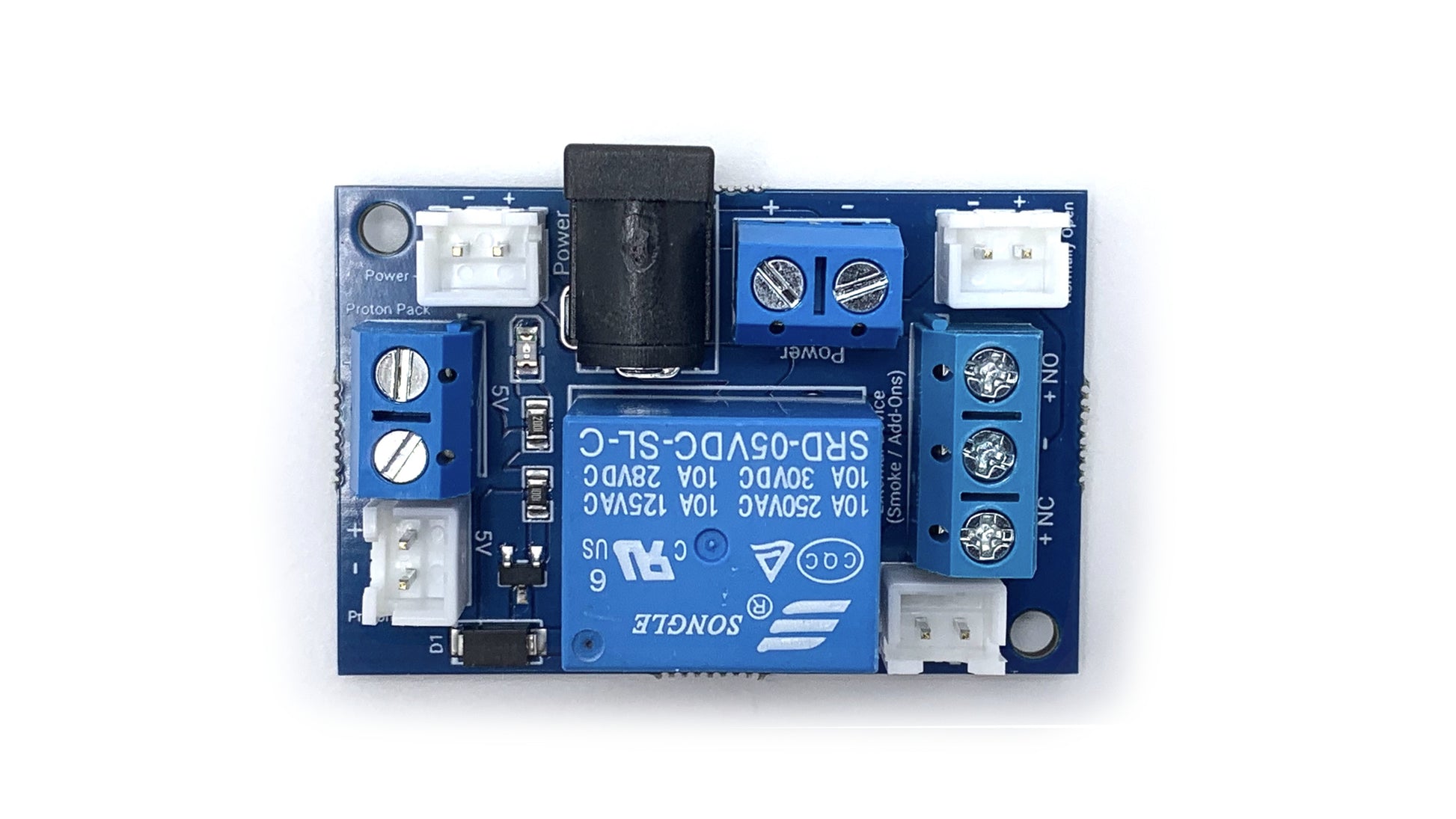

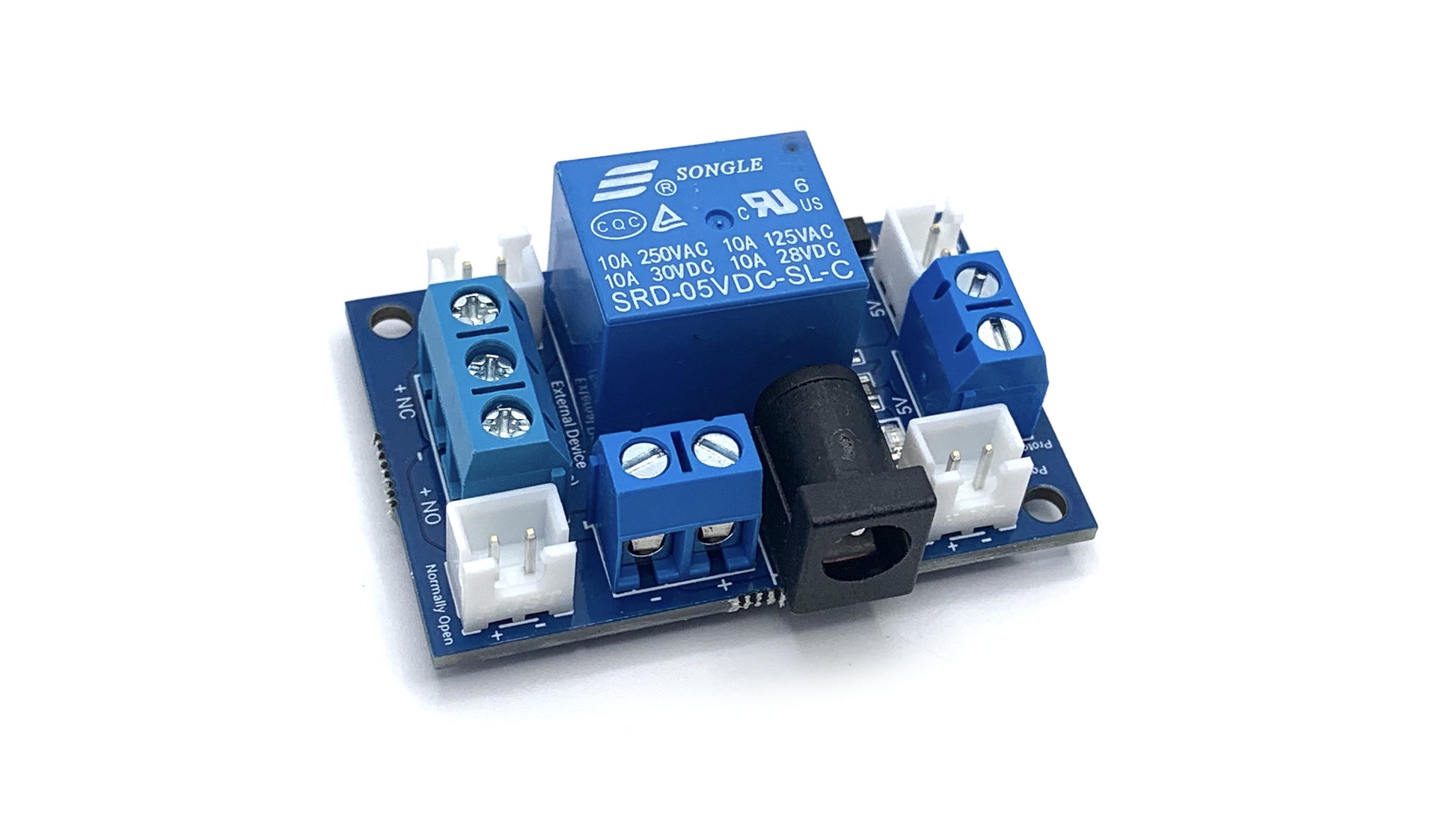

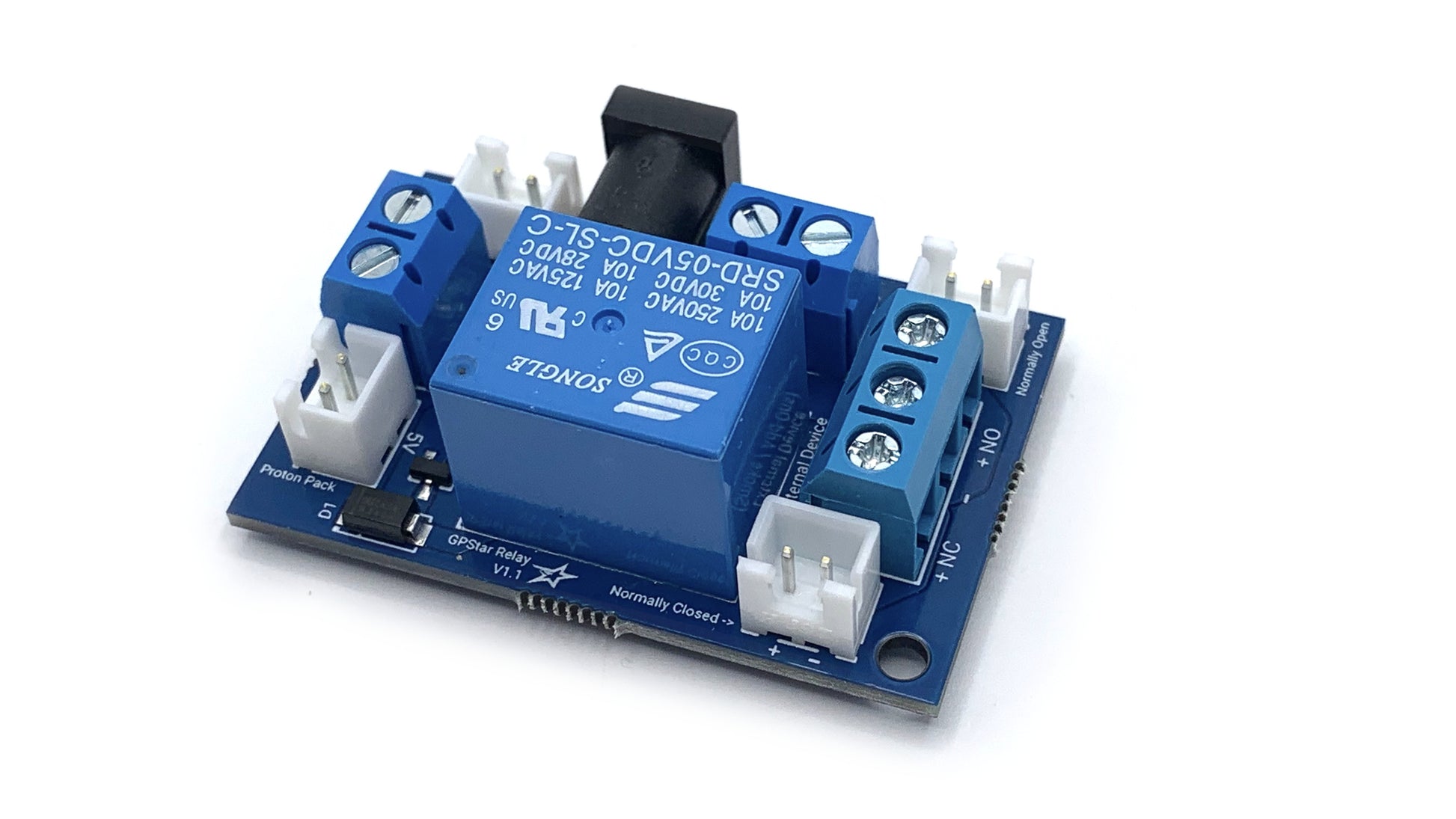

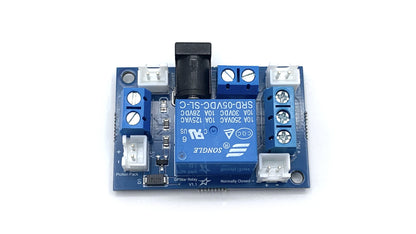

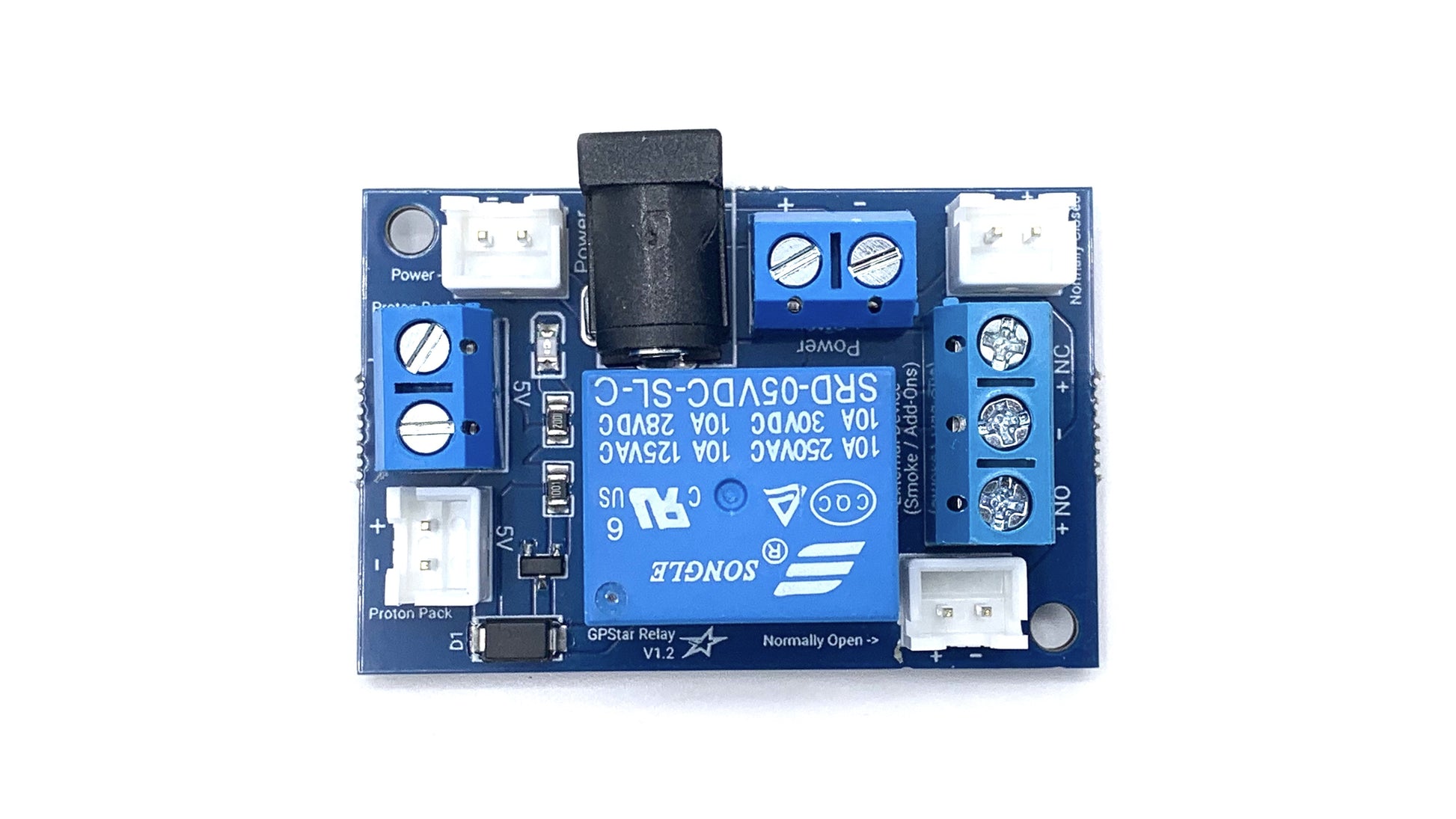

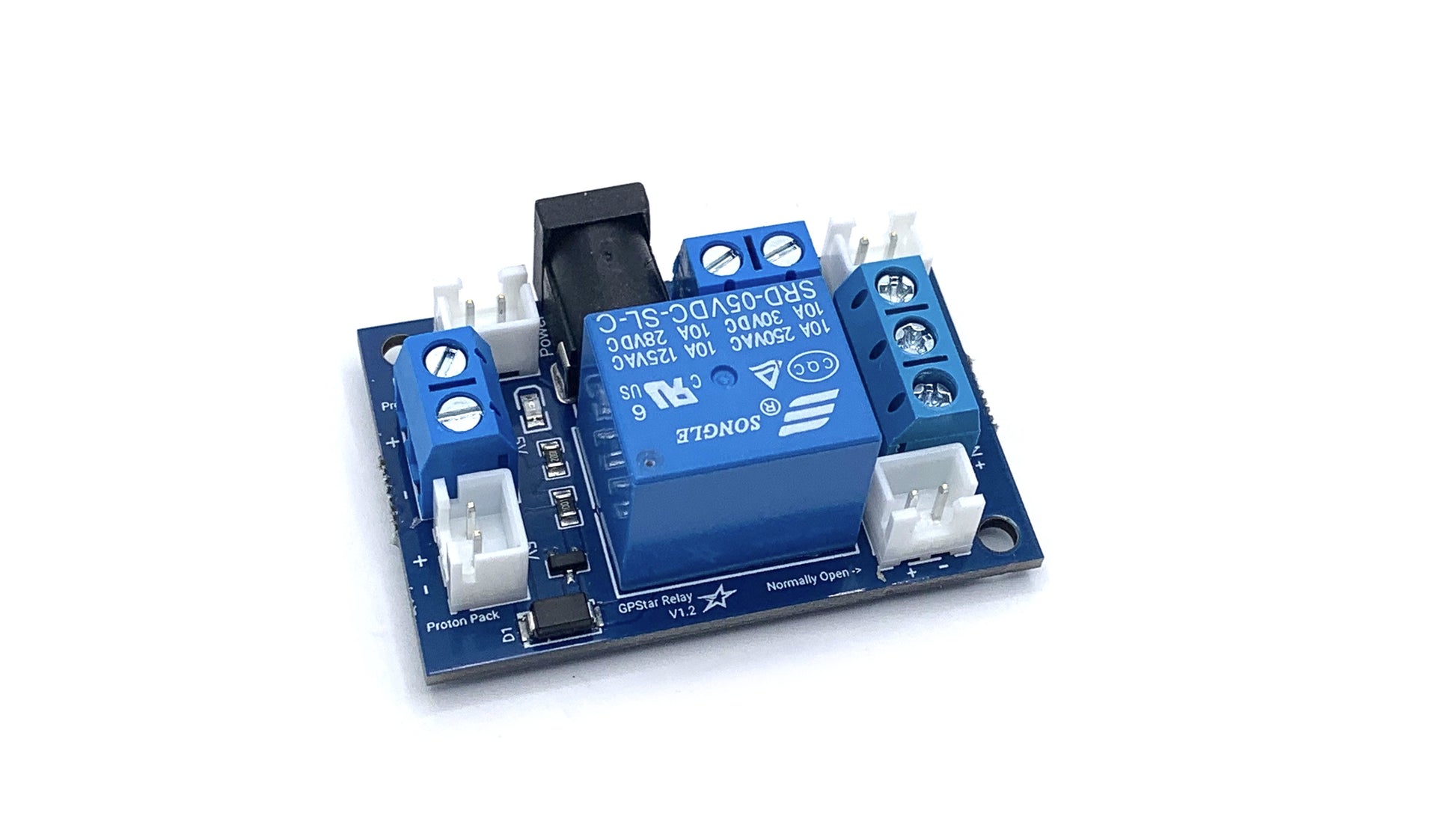

GPStar Relay

The GPStar Relay is a universal switching relay that can be controlled from your GPStar Proton Pack to activate smoke kits or other add-ons.

Compatible with a wide range of power supplies to switch, from up to 250 V AC / 30 V DC.

Easy to connect

1. Connect the Proton Pack connector side to any of the Smoke or Fan connections on the GPStar Proton Pack. You have two connectors that you can use. A JST-XH connector or a terminal block.
2. Connect the power source that you are using to power your smoke kit or other add-on a Power Connector. This power source can be the same battery you are using for your GPStar system, from your GPStar Amplifier, GPStar Power Hub or another second battery altogether.
3. Then connect your smoke kit or add-on to the Smoke Device Connector.

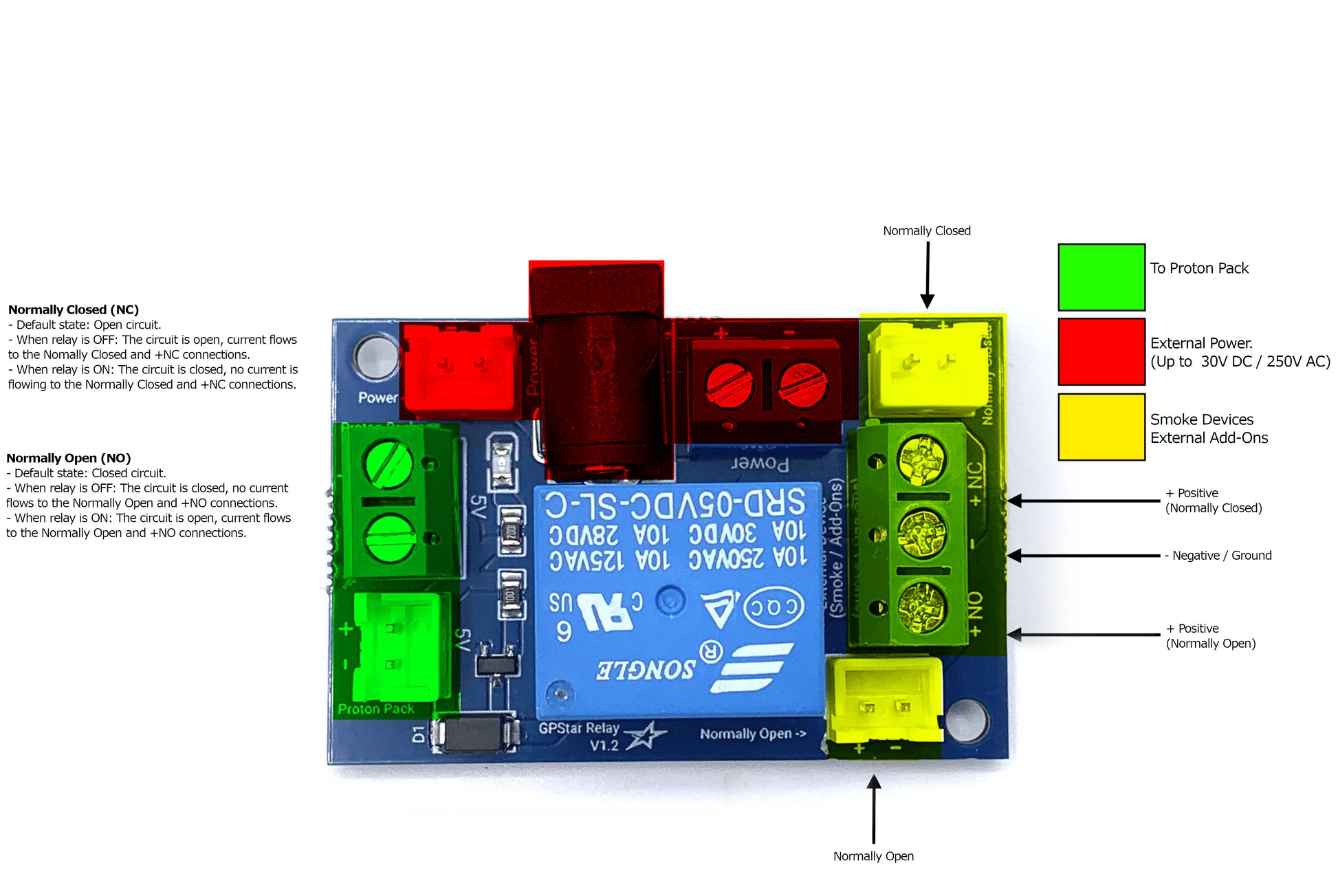

The Smoke Device connectors.

• +NO = Positive normally open. This will have positive from the external power source going to this terminal when the relay switch is not active.
• +NC = Positive normally closed. This will have the positive from the external power source going to this terminal when the relay switch is active. You will normally connect to this to have your devices activated by the GPStar Proton Pack during special venting or smoke sequences.
• - = Negative. The ground connection from the external power source.

Specifications

• Control Voltage: 5V DC
• Max Switching Voltage: 250 V AC / 30 V DC
• Max Switching Current: 10 A

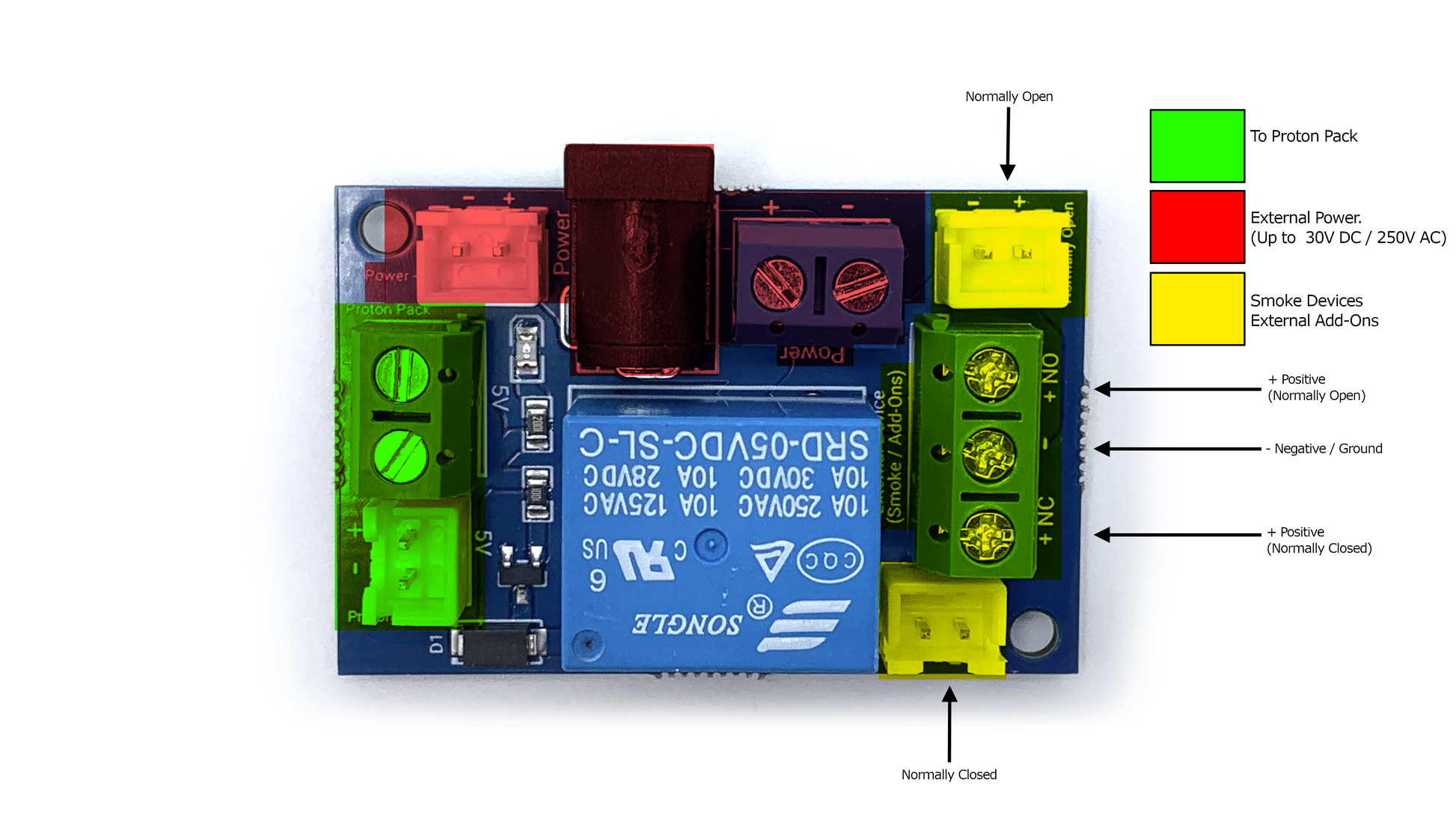

Download Connection Diagram
