GPStar Technologies

GPStar Audio XL

GPStar Audio XL

Regular price €60,00 EUR
Regular price €60,00 EUR Sale price €60,00 EUR
Sale Sold out
Type

GPStar Audio XL is a polyphonic audio player capable of playing up to 14 stereo WAV files at the same time. Layering, mixing, cross fading with independent track control of volume, pause, resume.

A physically larger version than the smaller GPStar Audio, however GPStar Audio XL has 20 GP pins, which you can easily play and mix sounds without any coding.

With its larger size and GP pins, GPStar Audio XL is better suited for interactive installations or usages which require simple buttons to trigger sounds. Simply connect the 2 pins together with a simple press or toggle switch and it will play the sound file assigned to that GP pin.

It's onboard stereo amplifier is capable of driving 2 speakers (2.5W @ 4Ω or 1.25W @ 8Ω per channel) from the onboard amplifier and also has a stereo out auxiliary jack.

Pair it up with a GPStar Amplifier for the ultimate interactive sound experience.

  • Polyphonic playback of up to 14 stereo audio tracks at the same time.
  • Powered by a 12V DC jack or 5V over the UART headers if using the serial communication protocol for control.
  • Supports Micro SD Cards of all capacities.
  • 20 onboard GP pins, which can be used to play tracks without any coding.
  • Supports up to 4096 uncompressed 16-bit stereo WAV files up to 44.1kHz
  • Onboard stereo amplifier, supporting 2 speakers:
  • 2.5W @ 4Ω or 1.25W @ 8Ω per channel.
  • Auxiliary stereo output jack with auto detection.
  • Realtime cross fading in or out of each track independently.
  • Pause and resume individual audio tracks.
  • Independent track volume and control + overall master volume control.
  • Standard serial communication protocol which can be controlled by a Arduino or any other micro-controller. (see the github library link below)
  • Programmable firmware updates with a FTDI Basic 5V cable or similar device.

Advantages of Polyphonic Audio Players: Read More

2 variants available.

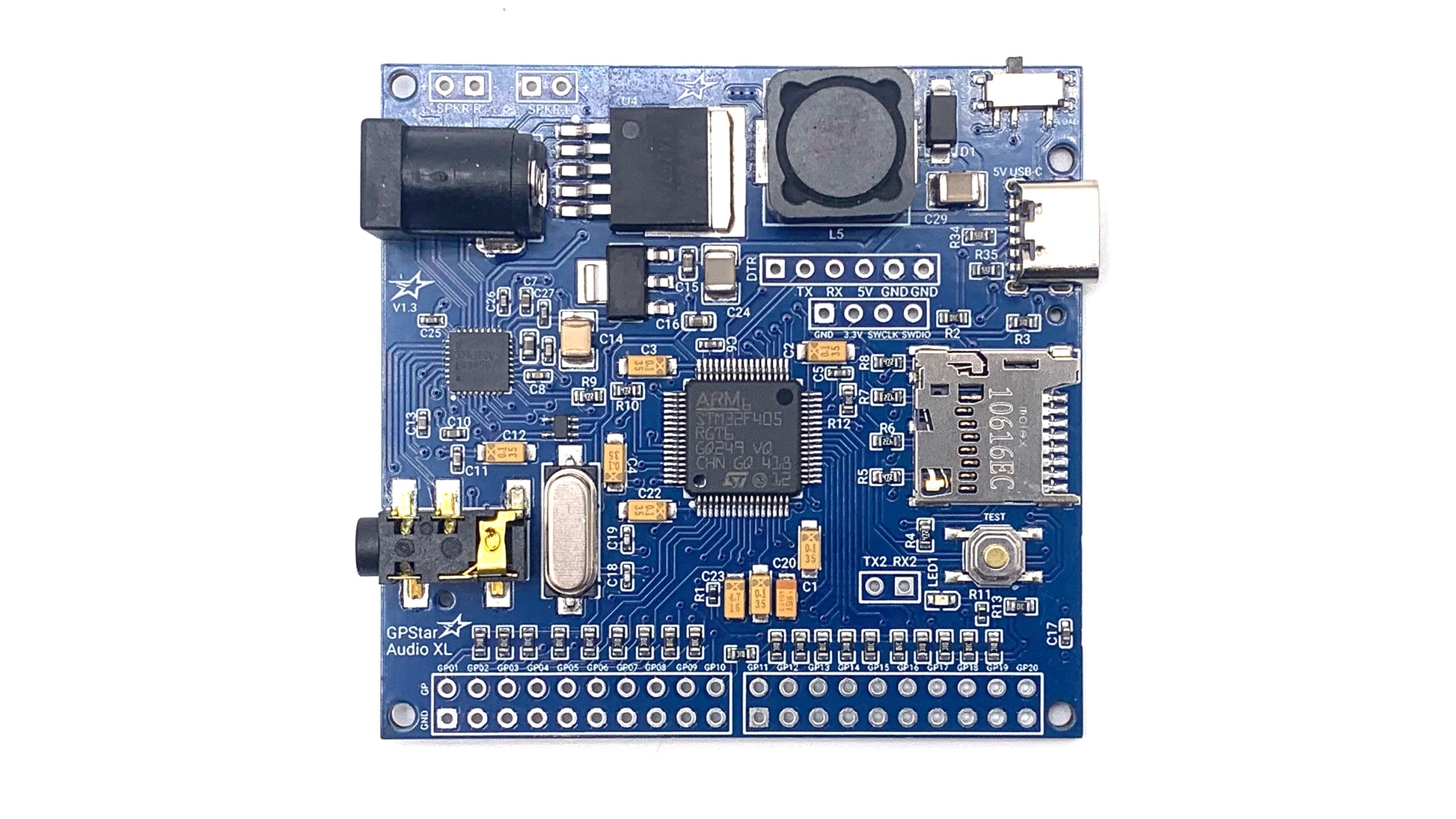

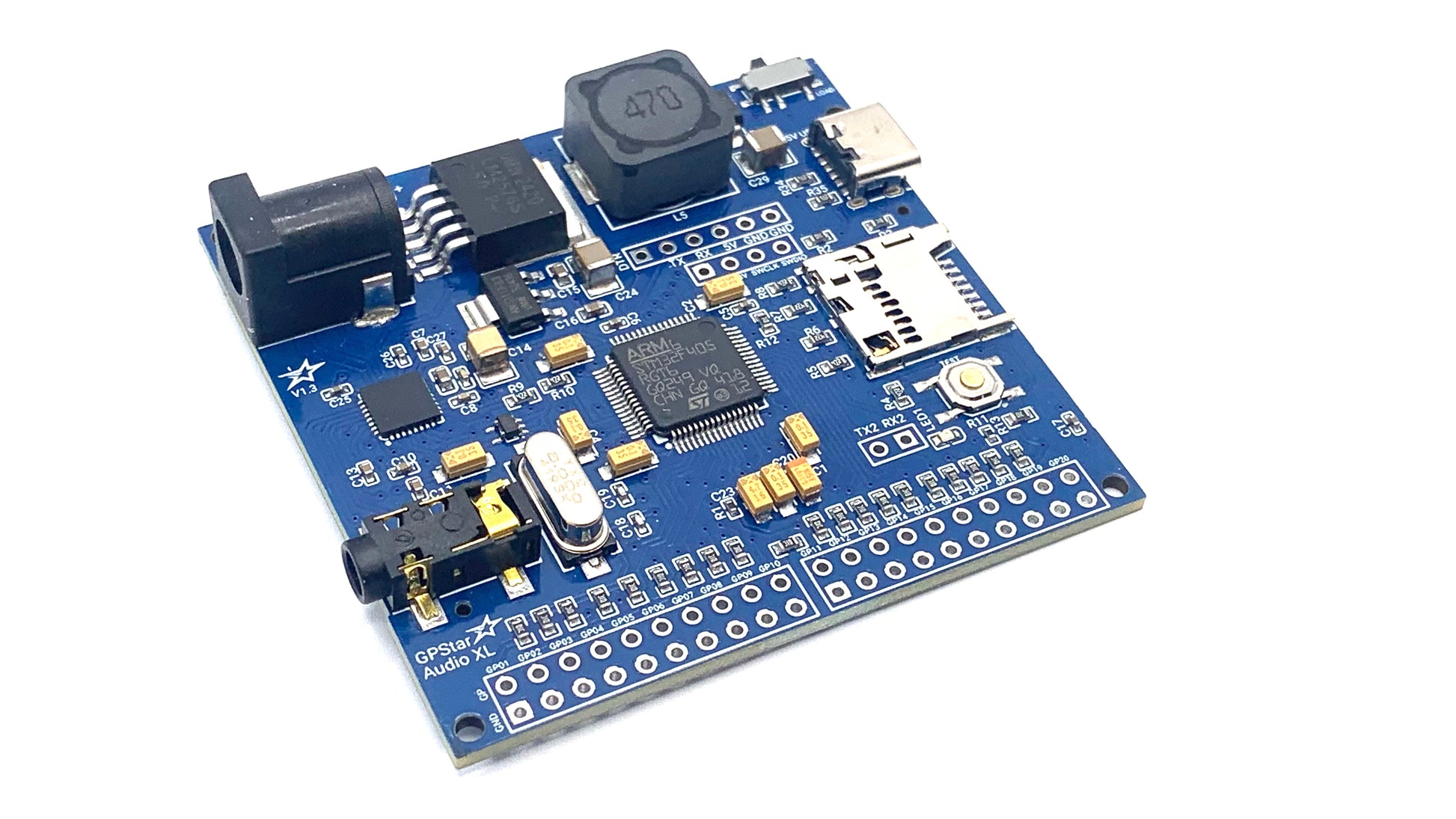

  • Board only.

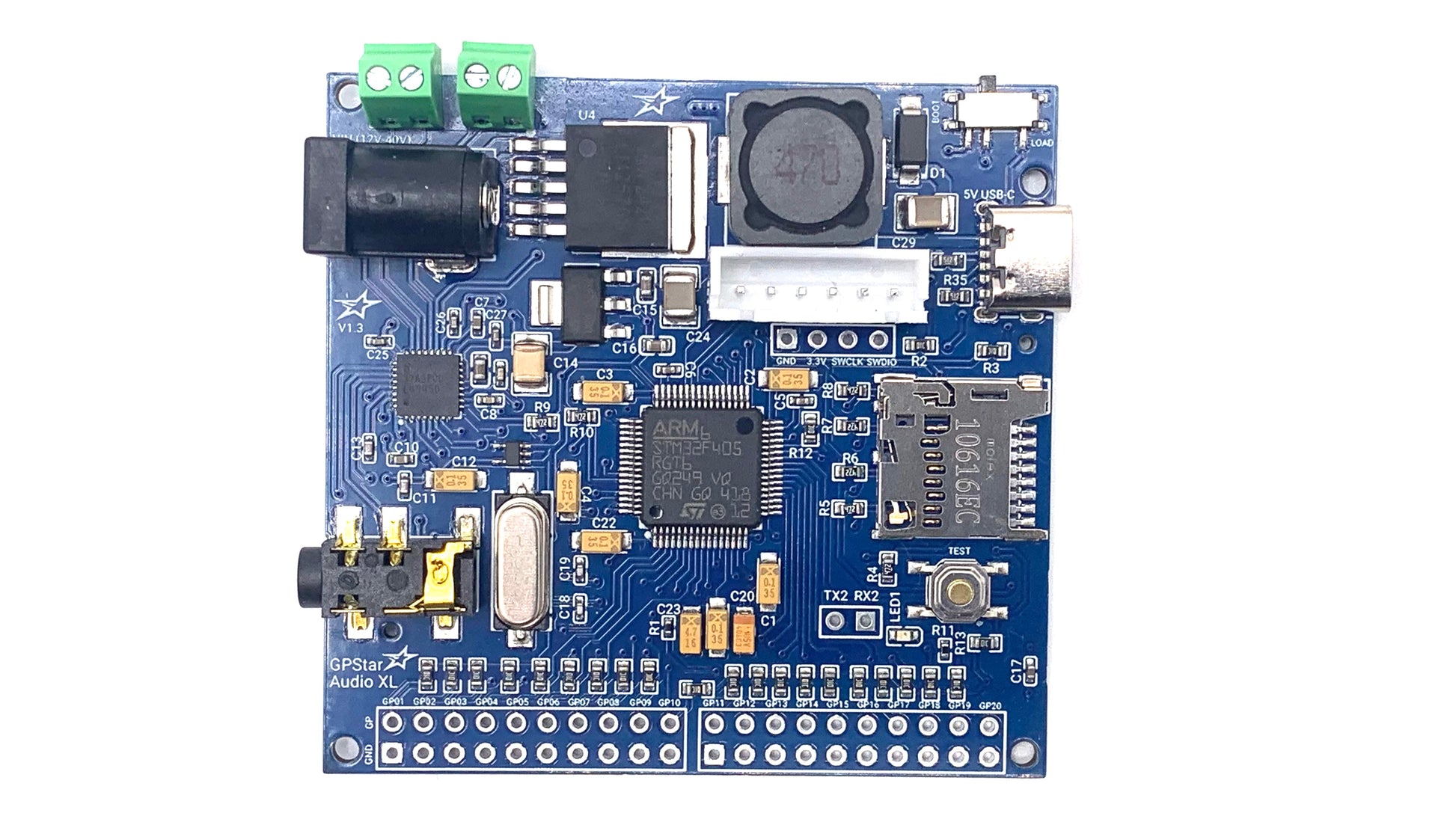

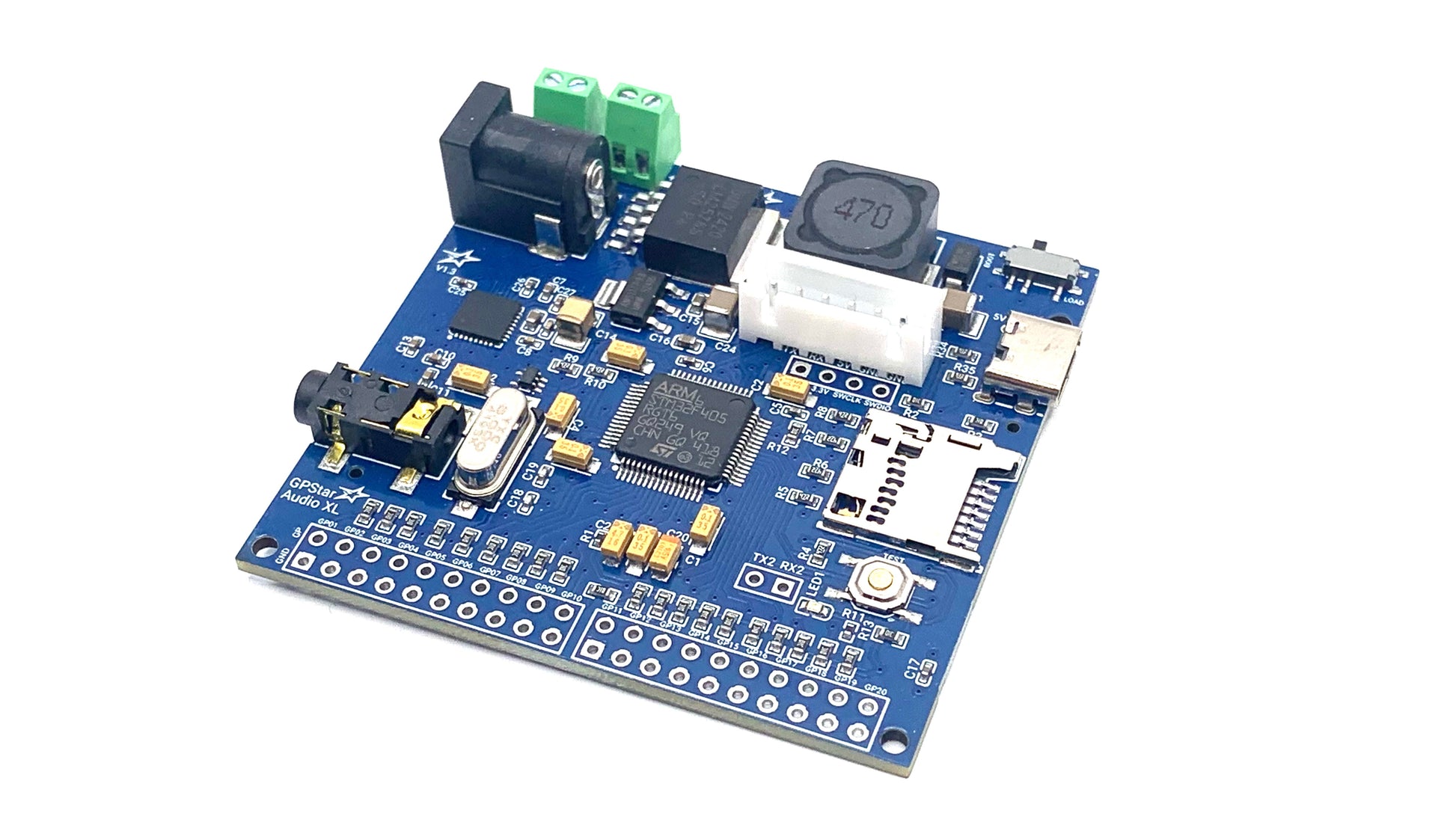

  • Board + connectors pre-soldered onto the board. The connectors consist of a JST-XH 6pin and 2 speaker terminal blocks.

Using GPStar Audio for your own projects?
Visit the GPStar Audio Serial Library GitHub page to see example usages to use in Arduino and other microcontroller projects:

https://github.com/gpstar81/GPStarAudio-Serial-Library

Board Dimensions:


Support and Updates:

Firmware
Please visit the Support & Downloads page to download the latest version of the firmware -> Support & Downloads

Software updater
Apple Mac Version 1.0 Download
Windows Version 1.0 Download

Instruction Manual
GPStar Audio XL Instruction Manual (pdf) Download

Example Configuration File
GPStarAudio (ini) Download

Technical schematics, connection diagrams, serial library and usage:
https://github.com/gpstar81/GPStarAudio-Serial-Library
