GPStar Technologies

Haslab Proton Pack & Neutrona Wand Complete Kit

Haslab Proton Pack & Neutrona Wand Complete Kit

€449,00 EUR
€490,00 EUR €449,00 EUR
Sale Sold out
Inner Cyclotron Kit

** Haslab Compatible **

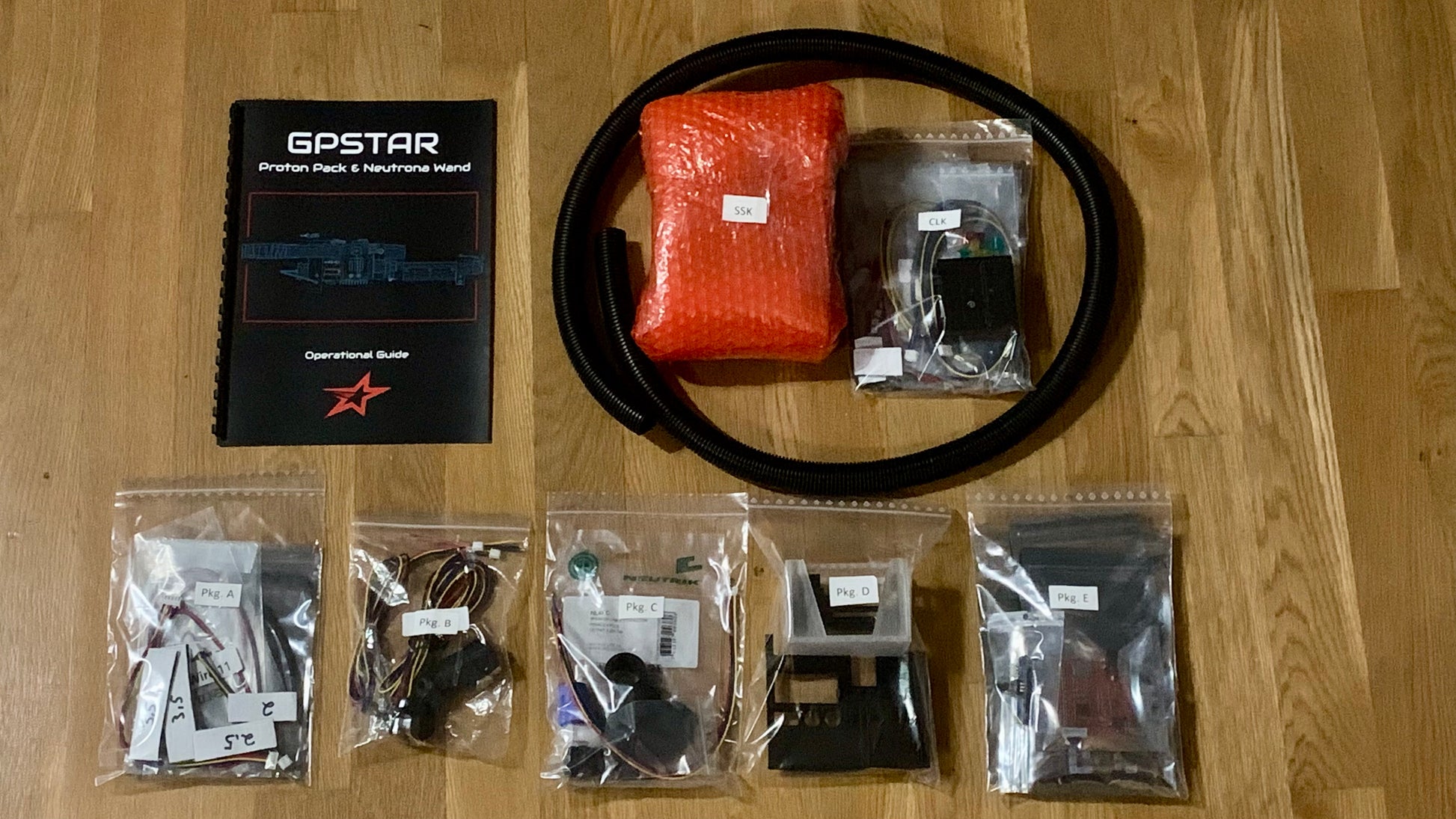

The GPStar Haslab Complete Kit. This includes the Essential Kit, Speaker Support Kit and the Inner Cyclotron LED Kit.

2 Year warranty from date of delivery: covers defects that arise at any time during the warranty period.

** Kits generally ship within 2-5 weeks after orders are received, depending on the stock of parts on hand. **

Additional information found on the project github page:

https://github.com/gpstar81/haslab-proton-pack

Operational Guide:

GPStar-Operational-Guide_V5-5.pdf (pdf)

Installation Manual:

GPStar_Haslab_Proton_Pack_Kit_Installation_Manual (pdf)

What's included:

Essential Kit

Haslab Speaker Support Kit

  • 2x 6.3mm Terminal speaker wires
  • 2x 2.8mm Terminal speaker wires
  • Aux cable
  • 12v DC cable
  • 3D Printed Speaker Mounts for both speakers
  • 4.5mm spacer
  • 2.5mm spacer
  • 1.5mm spacer

Inner Cyclotron Kit - 2 options to choose from, Standard LED and LED Panel variants:

    Standard LED Variant - Included in package:

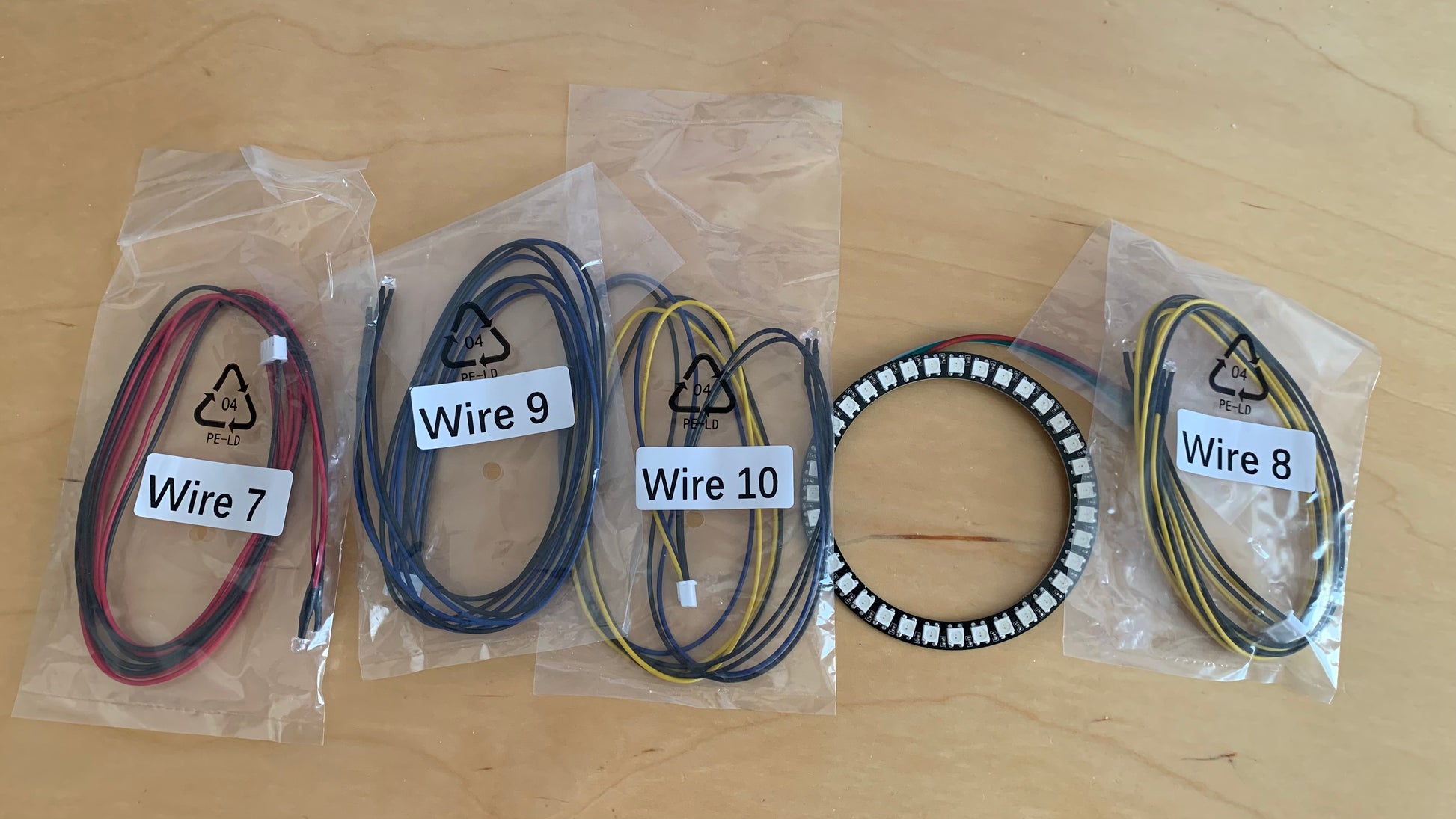

    • 35 Pixel NeoPixel ring w/ 3-pin JST connectors
    • 2x Panel LEDs Red w/ 2-pin JST connector
    • 3x Panel LEDs Yellow w/ 2-pin JST connector
    • 3x Panel LEDs Green w/ 2-pin JST connector
    • 2x Red Cliplites (for panel)
    • 3x Yellow Cliplites (for panel)
    • 3x Green Cliplites (for panel)

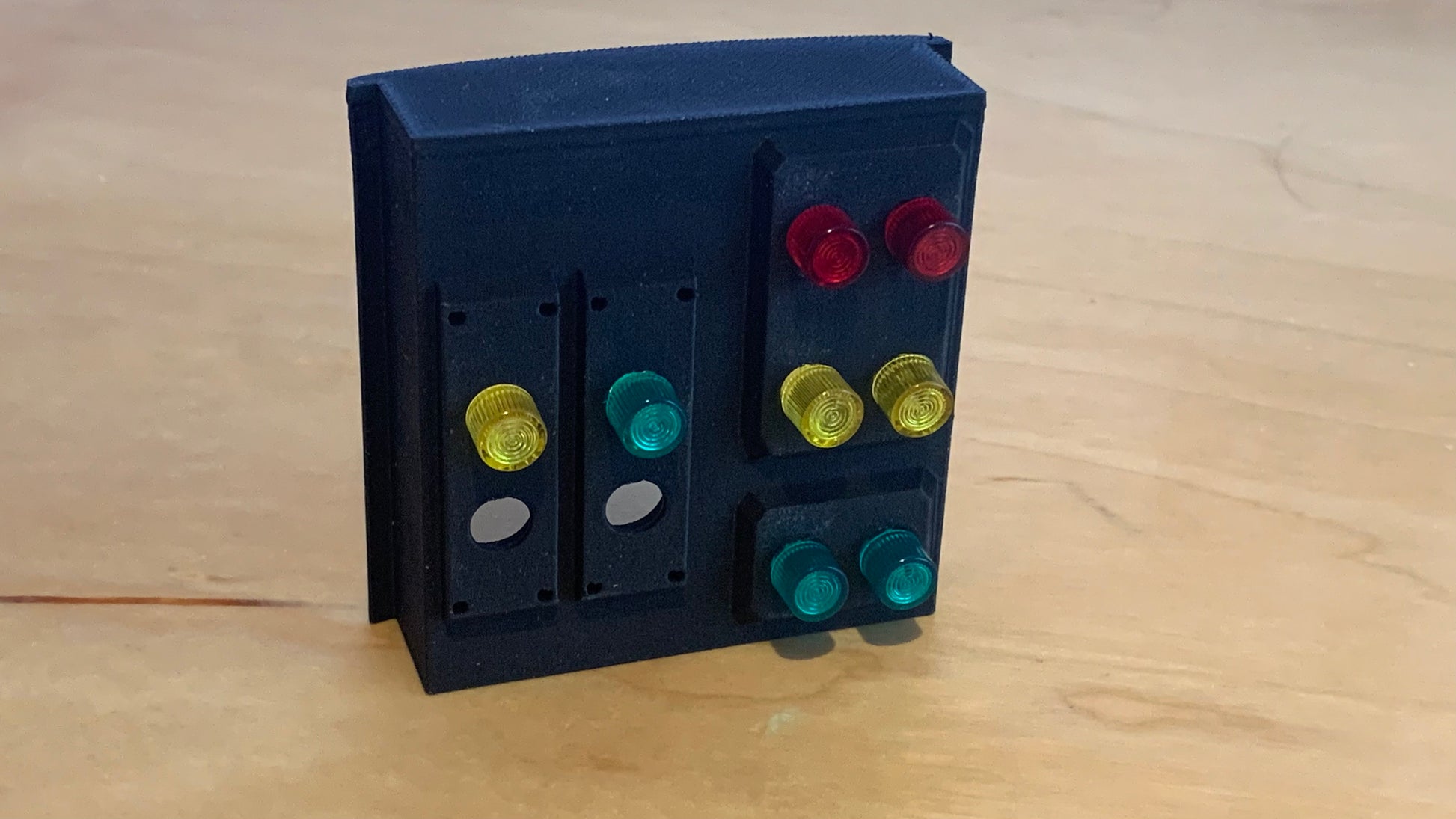

    • 3D Printed Cyclotron Switch Panel

    RGB LED Panel Variant - Included in package:

    • 35 Pixel NeoPixel ring w/ 3-pin JST connectors
    • 1x Inner Cyclotron LED Panel w/cables
    • 8x Clear Cliplites (for panel)
    • 3D Printed Cyclotron Switch Panel


    Differences between the available GPStar Haslab kits:

    Haslab Essential Kit

    Haslab Complete Kit

    Haslab Ultimate Kit

    Haslab Supreme Kit

    Proton Pack board, amplifier and wiring

    X

    X

    X

    X

    Neutrona Wand board and wiring

    X

    X

    X

    X

    Speaker Support Kit

    X

    X

    X

    Inner Cyclotron Light Kit

    X

    X

    X

    28-segment bargraph

    X

    X

    Power Cell

    X

    X

    Cyclotron 9-LEDs

    X

    X

    Top and vent light

    X

    X

    Wand barrel 50-LEDs

    X

    Neutrona Wand Hatlight Kit


    X
    View full details

    Proton Pack & Neutrona Wand Electronics Kit

    A fully integrated electronics kit for your Proton Pack & Neutrona Wand.

    Jammed packed with features and add-ons! Easy to install!

    ** Compatible with your Haslab Proton Pack and Neutrona Wand.

    Included in the essential package

      • Pack & Wand Replacement Boards
      • Rotary Encoder Volume Knob replacement
      • 2 GPStar Audio sound boards /w pre-soldered 6-pin headers/JST-PH wire connector

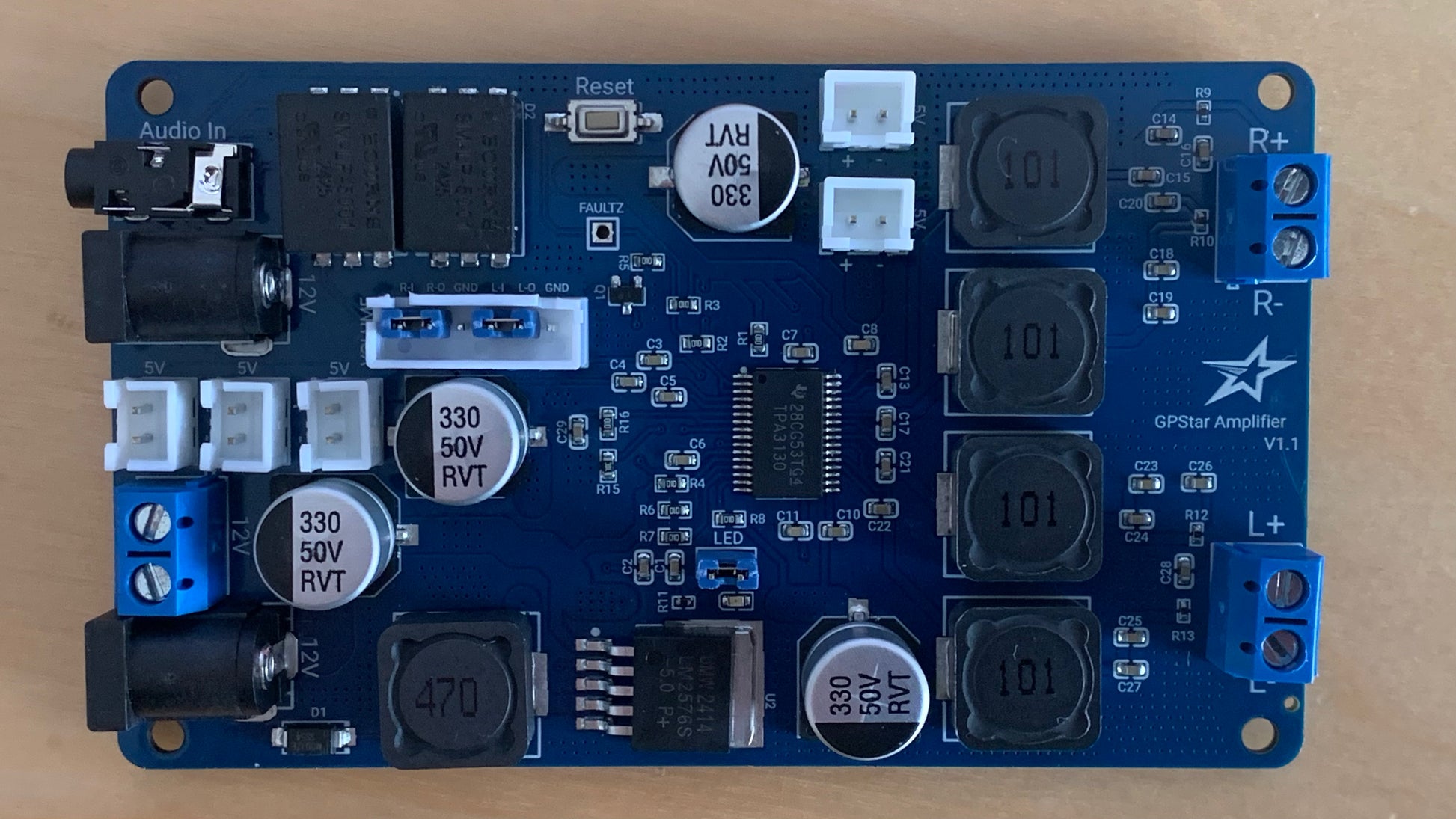

      • GPStar Stereo Amplifier with built-in ground loop isolator
      • All the wiring connectors needed for the Boards
      • USB to JST power cable (to 5V on battery pack)
      • Programming USB cable (for future software updates)
      • 3D Printed Wand Board Housing
      • 3M Double-sided Tape (to attach GPStar Audio & Amp)
      • 3D Printed Powercell Panel Replacement
      • Complete Hose Setup (easy to assemble)
      • 3/4" Split loom tube
      • Cnlinko connector and socket panel for the Pack end
      • Neutrik connector and socket for the Wand end
      • All necessary wires
      • 3D Printed housing for the Neutrik socket.
      • Clockwise/Counter clockwise cyclotron direction toggle switch (you can still toggle this via the Wand sub menu system)
      • Toggle switch to enable or disable the smoke relays. These can also be toggled on/off via the Wand sub menu system.
      • Colour Printed A4 size Operational guide.

    Main Features

    • Designed to be updated with new features and future optional add-ons. (Programming cable included)
    • All existing Haslab Proton Pack and Hasbro Neutrona Wand features still exist (ie. ribbon cable removal, The Video Game firing modes, volume control).
    • 3 different modes!
    • Can turn on the Proton Pack via the Neutrona Wand Activate Switch.
    • 1984/1989 mode uses the middle LED only for an accurate look. (The 3 LED per lens option can be toggled via the Neutrona Wand sub menu).
    • Clockwise/Counter clockwise cyclotron direction.
    • Start up and shut down ramping lights/sound sequence.
    • Continuous firing! You can fire your stream forever or have it overheat depending on the power level of the steam.
    • Wand tail firing sound when you stop firing (3 variations based on how long you have been firing)
    • Wand only fires when the barrel is extended and the 2 right side toggle switches are activated unlike the stock Wand.
    • Wand bargraph has new animations.
    • Three - 5V pin relays (they trigger during overheat and occasionally while continuous firing).
    Visit the github page for additional information

    User Controlled Menu Settings

    A DEEP Neutrona Wand settings menu:

    • Accessed via the barrel’s orange hat light after toggling The Video Game modes or while the Neutrona Wand is powered down.
    • Music playback control, volume control for Pack/Wand, independent music volume control for Pack/Wand, independent sound effects volume control for Pack/Wand, loop music track, change track.
    • Neutrona Wand sub menu allowing you to toggle various main features.

    Neutrona Wand sub menu features:

    • 1984/1989/Afterlife/Frozen Empire modes
    • Cyclotron rotation direction
    • Toggle 1984/1989 modes single LED to 3 LEDs per cyclotron lens
    • Vibration control
    • Vibration while firing only
    • Smoke settings
    • Crossing the streams /Video Game modes
    • Plus many more!
    See More Menu Features

    Polyphonic Sound

    Utilising Polyphonic technology from GPStar Audio, this kit can play and mix up to 14 stereo tracks simultaneously and independently.

    • Your Proton Pack boots up and the idle sound effects overlay/transition smoothly.
    • You boot up the Neutrona Wand via the 3 toggle sequence accurate to the Afterlife and Frozen Empire films and notice each unique toggle effect that is played is layered on top of each other.
    • You Fire! While blasting away with the Proton stream you can still hear all the layers of sound effects that came before...the Proton Pack effects, each Neutrona Wand toggle effect, etc.
    • Oh and let's not forget music mode. Yes while your Proton Pack is rocking out tracks from your favourite scenes you can still operate it with all of it's accompanying sound effects independently and once again layered on top of the music
    • You may also notice during all this that the transitions between sound effects are smoothly layered with no janky transitions.

    Smoke Effects

    Compatible with a wide array of aftermarket smoke setups from various vendors, or build one yourself.

    Learn More

    Inner Cyclotron Add-On Kit

    • Inner Cyclotron with spinning lights.

      Drop in our included 36 pixel LED ring into your existing cyclotron or a 3D printed replacement to really bring an awesome Haslab inclusion to life! It can also change colour based off The Video Game firing modes.

      ** Included with the GPStar Complete Kit **

    • LED support for the inner panel switch next to the Cyclotron.

      Our included LEDs connect to our Pack board and the included 3D printed inner panel really makes the inside of your Pack POP!

      ** Included with the GPStar Complete Kit **

    Speaker Support Kit

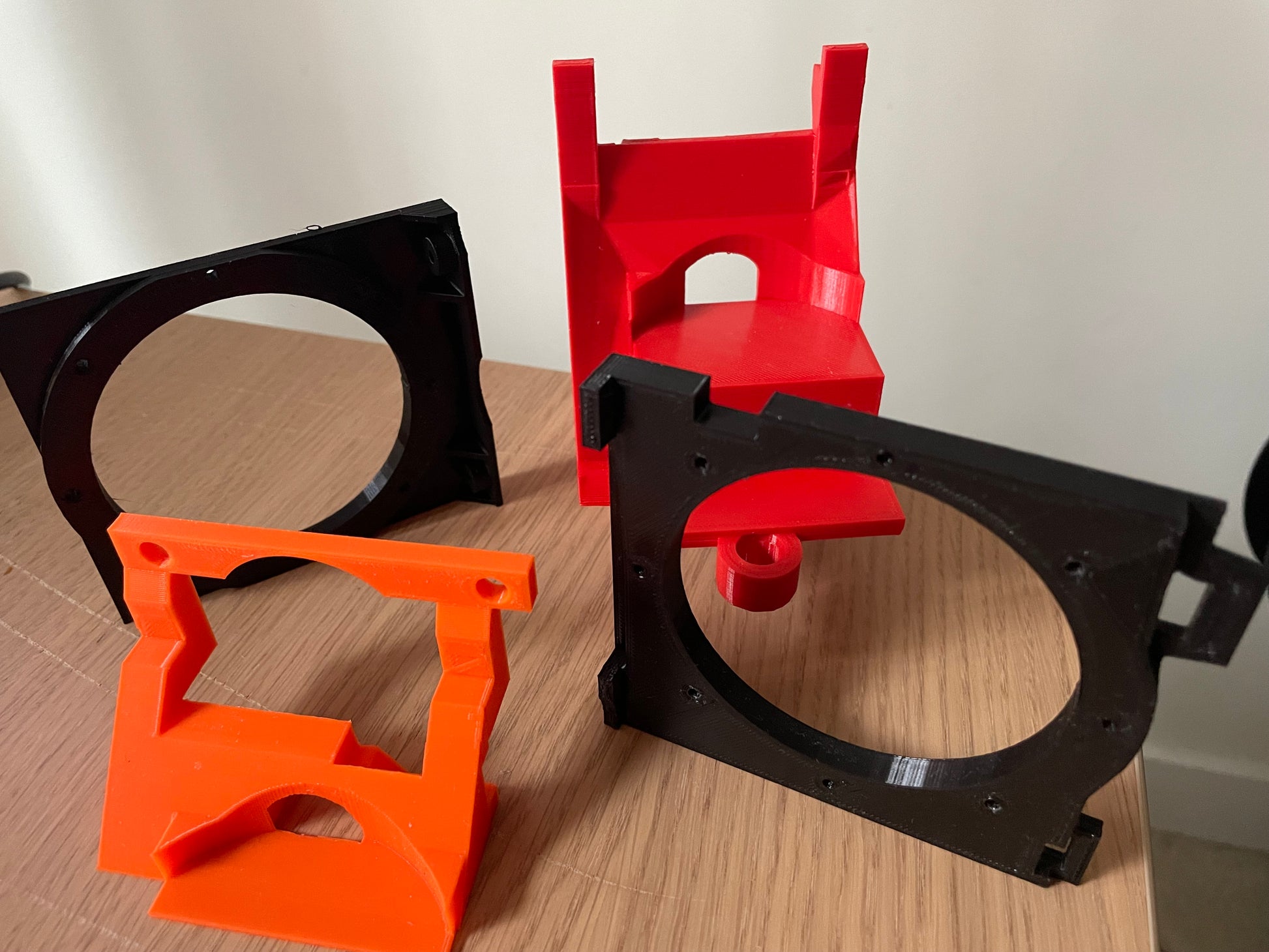

    • Made for those who want a Speaker kit, our kit includes wires and a 3D printed mount that was designed for 3" speakers and our GPStar 12V Amplifier.

      ** Included with the GPStar Complete Kit **

    • ** Included with the GPStar Complete Kit **

    Optional Add-on Features

    • Smoke

      Compatible with a wide array of aftermarket smoke setups from various vendors, or build one yourself.

      Learn More

    • 28 LED Bargraph

      Support for a 28 LED Bargraph to replace the 5 LED Hasbro bargraph.

      • Think back to the "heat 'em up!" moment in the first film.
      28 Segment Bargraph

    • Cyclotron LED Replacements + N-Filter Lights

      Replace the lights in the cyclotron lid with RGB enabled LEDs. This enables you to have The Video Game mode colours in your cyclotron lid or even your own custom colours which we call "Spectral Mode" which can be configured from the menu system.

      Cyclotron 9-LEDs kit

    • Power Cell LED Replacements

      Compatible with our 15 LED RGB Power Cell. This Power Cell offers 2 more extra LED's to be screen accurate to the films, and it has the ability to change colours with our "Spectral Mode" and The Video Game modes.

      15-LEDs Powercell

    Required Components (Not Included)

    • Speakers

      There are many options available and it's really up to you. We recommend taking two 3" speakers which is more than enough to Pack a punch.

      The recommended speakers are:

      Lavoce FSF030.70
      Lavoce FSF030.71

      For cheaper alternatives, while not as high quality, the following will also work: 3" 15w speakers

      These are also compatible with our Speaker Support Kit (included with the Complete Kit)

    • 2 Micro SD Cards

      Two high quality Micro SD Cards are required. One for the Proton Pack and the other for the Neutrona Wand.

      More Info

    • Battery

      • A regulated 5V is required to power the system with up to 2 amps is recommended.
      • The TalentCell Rechargeable 3000mAh 12V/5V battery Pack is recommended as it has input connections to output both 5v and 12v without modifications/added components needed. The 12V/5V TalentCell can be useful if you decide to use a 12V amp for your Proton Pack audio. However any other battery can work as long as it meets the power requirements indicated.
      More Info

    Demonstration Video and Walkthrough

    Installation Video Guide

    User Support
